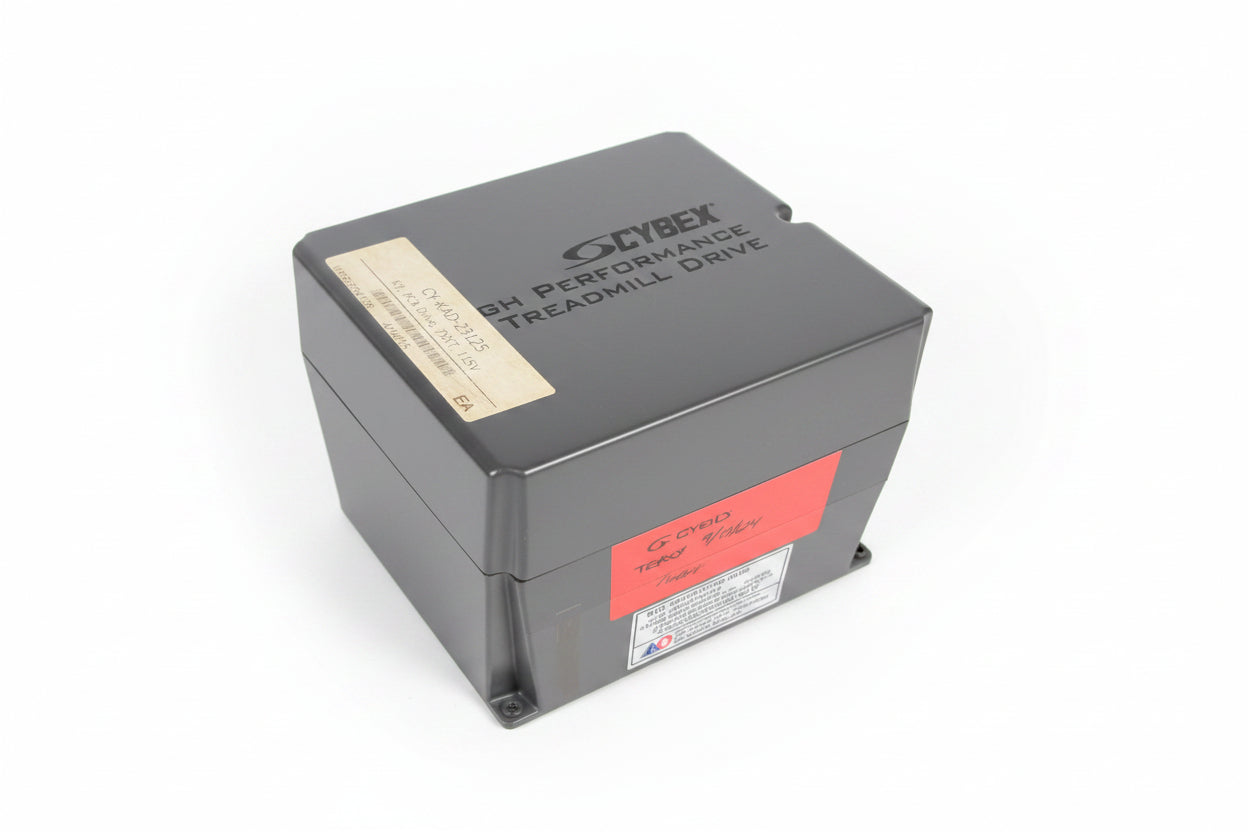

770T High Performance Treadmill Drive AD-23914
Condition: Pre-Owned – Tested & WorkingCybex AD-23914 High Performance Treadmill Drive for 700 Series. OEM motor control board that regulates speed, incline, and communication between console and drive motor. Pulled from working commercial unit and tested for full functionality.

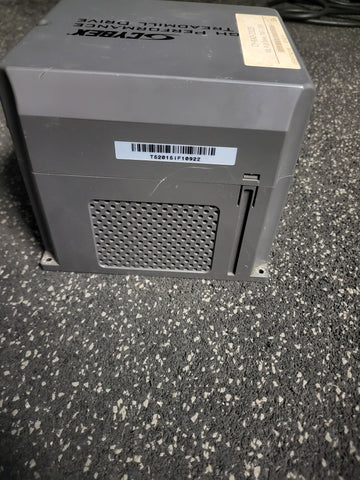

♻ $50 CORE REFUND PROGRAM:
Send your old IFT Drive core back to us and receive a $50 refund after we receive it. You must include your order number, name, and contact info with the return. Core must be the same type of IFT Drive. Refund processed within 5 business days of receipt.
Send your old IFT Drive core back to us and receive a $50 refund after we receive it. You must include your order number, name, and contact info with the return. Core must be the same type of IFT Drive. Refund processed within 5 business days of receipt.
Key Functions
- Motor Control: Regulates DC drive motor speed 0.5-15.6 mph
- Incline Control: Manages elevation motor 0-15% grade
- Console Comm: CANbus communication with upper board
- Safety Systems: Monitors speed sensor, E-stop, thermal cutoff
- OEM Quality: Genuine Cybex electronics – 700 Series
- Core Exchange: Send your old core back for $50 refund
Technical Specifications

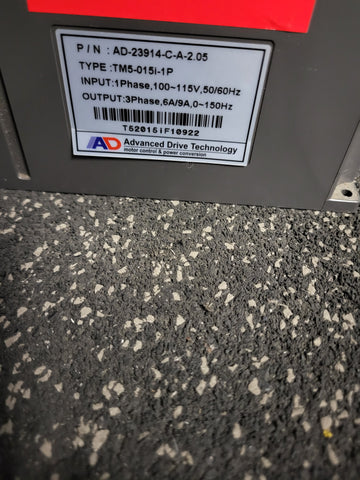

Part Number
AD-23914
Part Type
High Performance Treadmill Drive
Manufacturer
Cybex International
Series
700 Series – 625T, 770T, 790T
SKU
CYB-AD-23914
Core Program
$50 refund with core return

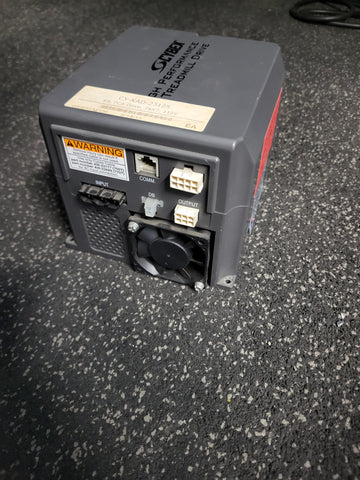

Verified Machine Compatibility
Cybex 625T Series
- 625T-E3: G1201-J0812, J0813-J0930, J1001-K0914, L0801_up
- 625T-E3-06: L0801_up
- 625T-LED: F0901-H0531, H601-J0812, J0813-J0930, J1001-J1013
Cybex 770T / 790T Series
- 770T, 790T: H0701 – J0812
- 770T-E3: E0201 – F0922, F0923 – J0812
- 770T-E3-04: J1001-L0731
- 770T-LED: E0201 – F0922
- 790T-GO: J0527 – J0812
- 790T-LED: H0701 – J0812
IMPORTANT: This drive is for 700 Series treadmills only. Verify your serial prefix and date code before ordering. Not compatible with 500T, 550T, or 750T models. Check your existing drive part number – must be AD-23914 or cross-referenced equivalent.
Condition
Pre-owned – Tested & Working. Pulled from commercial unit. Bench tested for power, communication, motor output, and incline control. No burnt components or board damage.
- Power: Powers on – no blown fuses or burnt traces
- Communication: CANbus verified – talks to console properly
- Motor Output: Tested – regulates speed 0.5-15.6 mph
- Incline: Elevation circuit tested – 0-15% grade

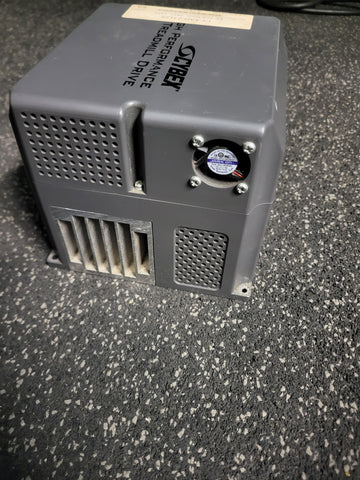

- Connectors: All plugs intact – no broken pins
- Board: No corrosion, water damage, or prior repairs
TESTED & READY TO INSTALL:
Verified for power, communication, motor control, and incline. 30-day warranty covering electronic functionality. $50 core refund available when you send your old core back.
Verified for power, communication, motor control, and incline. 30-day warranty covering electronic functionality. $50 core refund available when you send your old core back.
