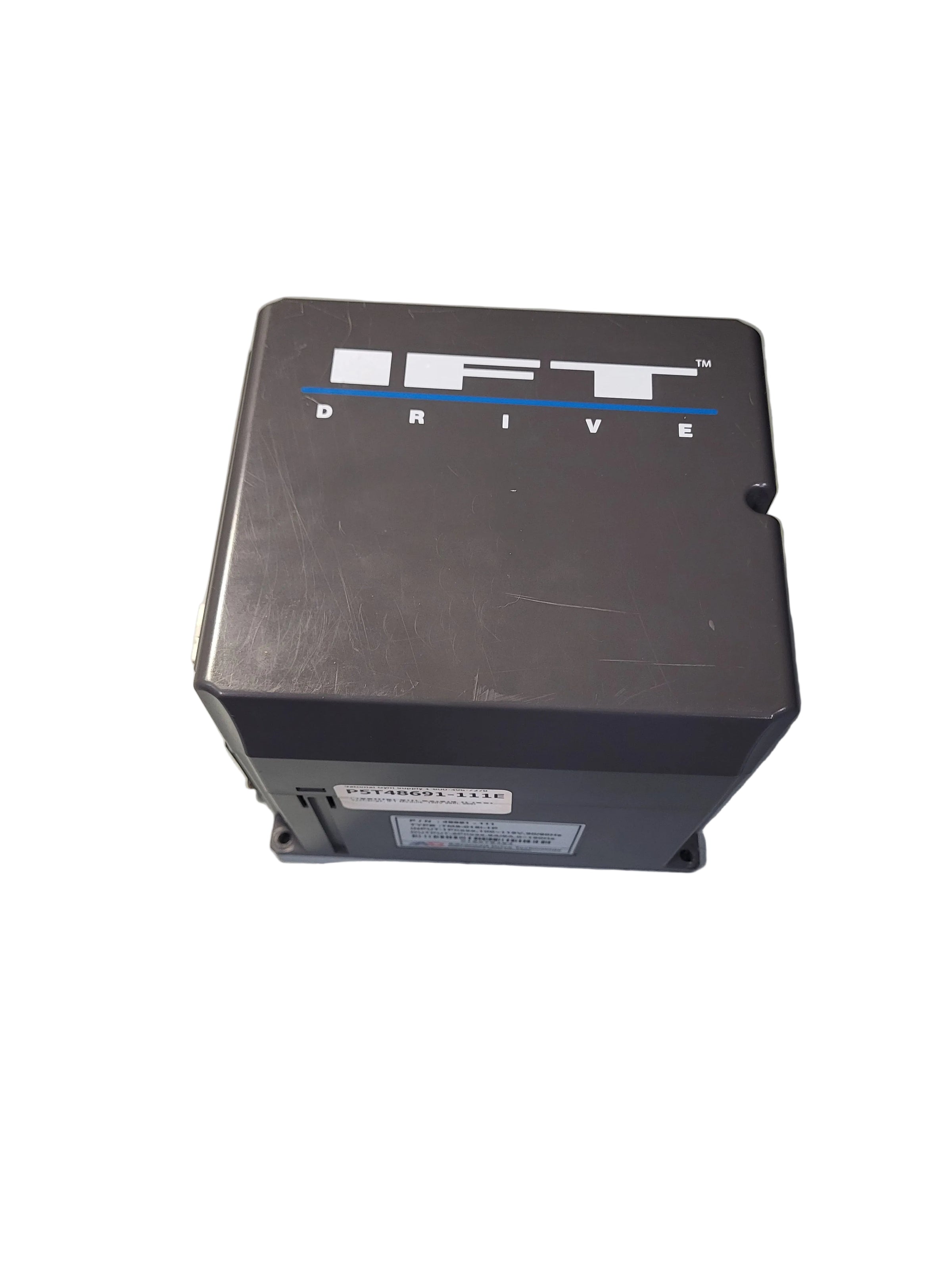

Precor Treadmill IFT Drive / Motor Controller 48691-111
Condition: Remanufactured | Tested WorkingThis is an IFT Drive / Motor Controller for Precor commercial treadmills. Also called the lower control board or LPCA. Serviced and tested in Lancaster, PA. Main motor controller that regulates DC drive motor speed, processes incline commands, and communicates with the upper console. Common replacement for Error 30, Error 42, dead treadmill, or no belt movement.
✅ REMANUFACTURED PROCESS:

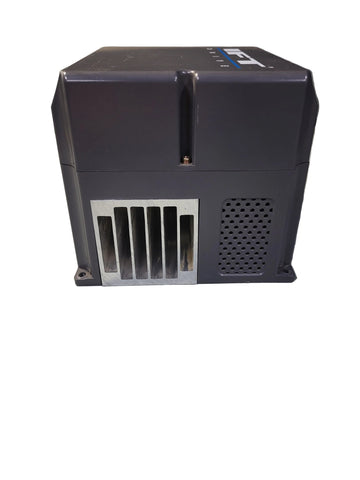

Professionally cleaned and inspected • Capacitors tested/replaced as needed • High-voltage components tested • All connectors cleaned • Conformal coating touched up
Professionally cleaned and inspected • Capacitors tested/replaced as needed • High-voltage components tested • All connectors cleaned • Conformal coating touched up

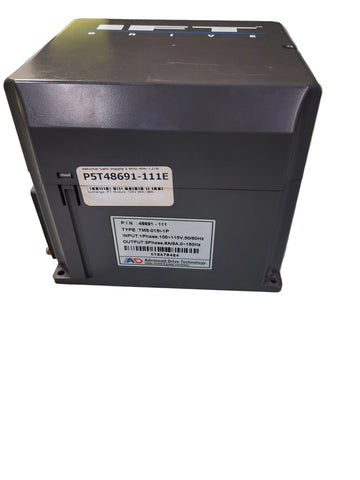

Technical Specifications
Precor Part Number
48691-111
Type
TM5-015i-1p IFT Drive
Function
IFT Drive / Lower Control Board / Motor Controller
Voltage
120V AC Input
Brand
Precor OEM
SKU
PREC-IFT-48691-111-RF

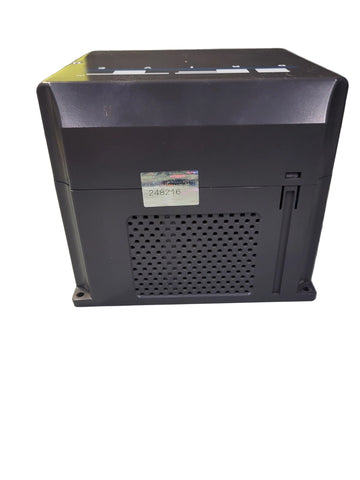

Verified Machine Compatibility
This IFT Drive fits the following Precor models:
- Precor 9.57 AYYK, AGKF (Residential)
- Precor C954i AEXE, ADEY 120V
- Precor C954i ATTD, AB37 120V
- Precor C956i AJMB, AGJY 120V
- Precor C956i AYZD, AGKY 120V
- Precor C966i AA67, AABX 120V
- Precor C966i AADY, A884 120V
- Precor TRM10 A837 120V
- Precor TRM823 AMWZ AAEZ (915MHZ) 120V
- Precor TRM823 AMWZ ADGC 120V
- Precor TRM823 AMWZ AEYK 120V
- Precor TRM823 AMWZ AEYK AAEY (PVS) 120V
- Precor TRM833 AMWZ A844 120V
- Precor TRM885 AMWZ ADGW 120V
⚠️ HIGH VOLTAGE WARNING:
This board contains high voltage components. Installation should be performed by a qualified technician. Always unplug treadmill and discharge capacitors before service. Improper installation can cause damage or injury.
This board contains high voltage components. Installation should be performed by a qualified technician. Always unplug treadmill and discharge capacitors before service. Improper installation can cause damage or injury.
COMPATIBILITY NOTE:

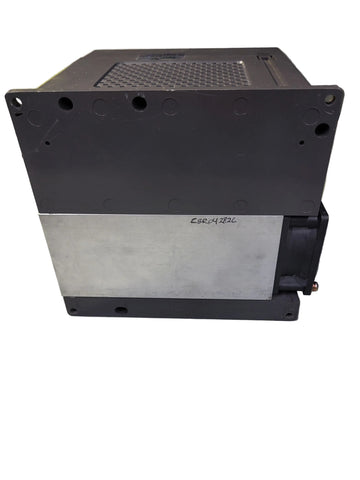

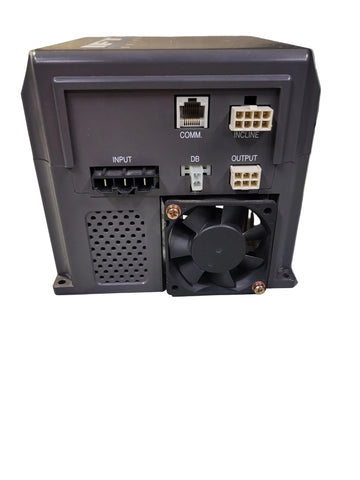

Always verify your existing board part number and physical appearance before purchasing. This drive replaces 40+ OEM numbers - match by connectors and mounting points, not just model number.
Always verify your existing board part number and physical appearance before purchasing. This drive replaces 40+ OEM numbers - match by connectors and mounting points, not just model number.
Replaces OEM Part Numbers
This IFT Drive is a direct replacement for all of the following Precor part numbers:
- 48691103
- 48691107
- 58125101
- 300503102
- 300503103
- 300503104
- 300503105
- 300503106
- 300503-102
- 300503-103
- 300503-104
- 300503-105
- 300503-106
- 48691-101
- 48691-103
- 48691-107
- 48691-107D
- 48691-109
- 48691-111
- P5T300503-104
- P5T48691-107
- P5T48691-111RE
- PPP0000000300503104
- PPP0000000300503106
- PPP000000048691103
- PPP000000058125101
- PPP000000300503106
- PST48691-111E
- P6T30050-310
- P6T300503-106
- P5T48691-111
