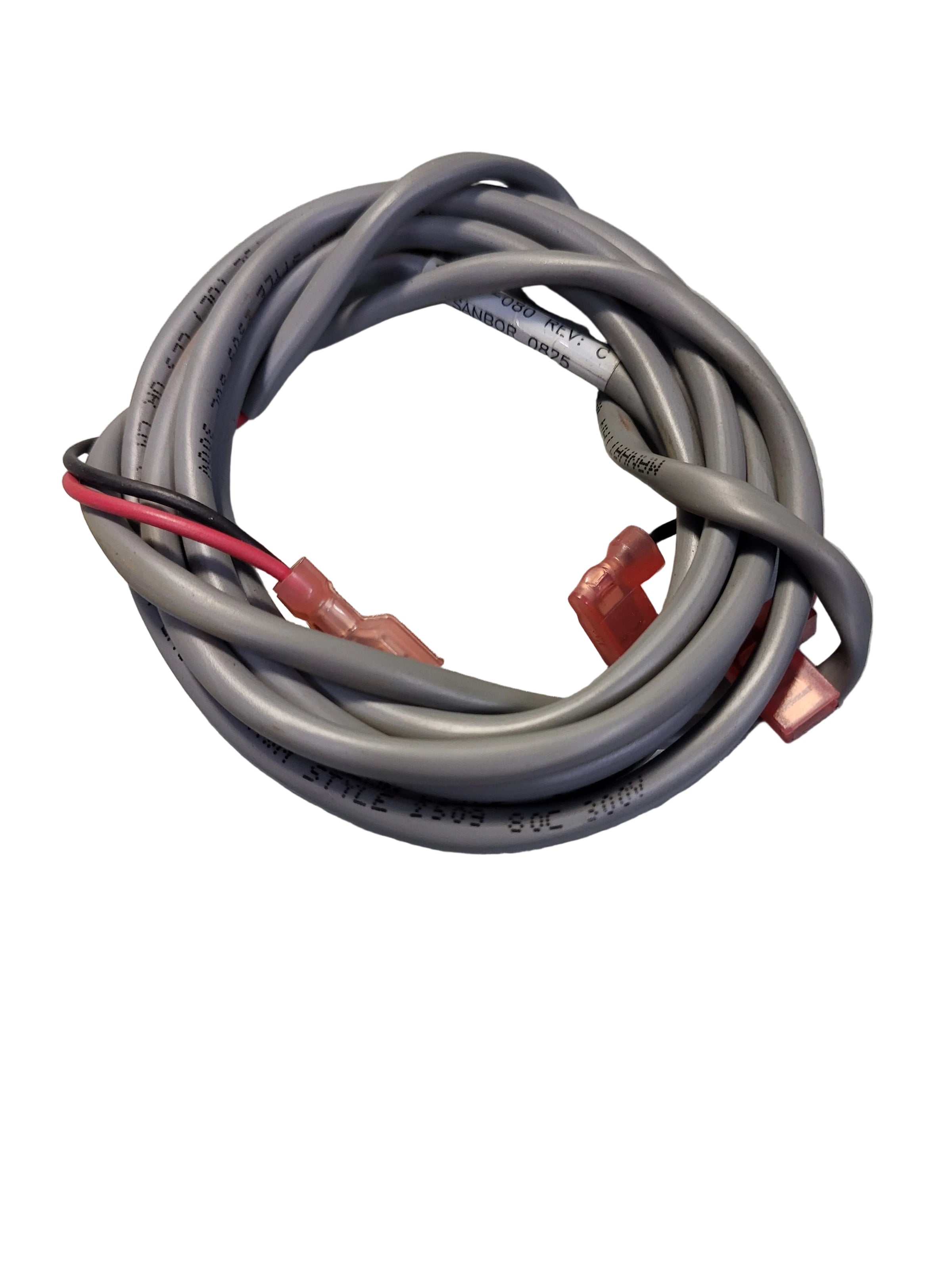

Precor EFX 6V Battery Cable for Self-Powered Ellipticals (45334-080 REV.C)
Condition: Used OEM | As-IsOriginal OEM replacement cable for Precor EFX battery systems. The Precor Battery to Lower Control Board Cable 45334-080 REV.C connects the 6V battery to the LPCA for backup power on EFX 546i, 556i, 576i, 5.17i, and 835 self-powered ellipticals. Powers memory and clock when the unit isn’t being used. Professional pull from a commercial facility.
Condition & Service

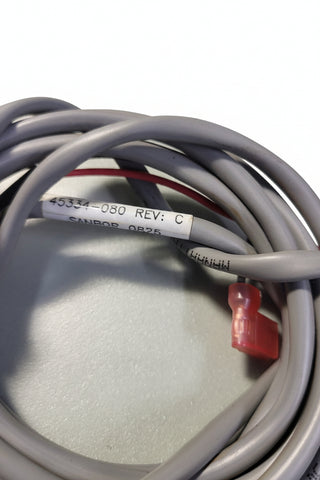

This is an original OEM Precor cable manufactured by SANBOR 0825 = 25th week of 2008. Professional pull from a working commercial machine. Sold As-Is after visual inspection for wire and terminal integrity.
- Condition: Used OEM – Gray jacket intact with no cuts or exposed wire. Red 22-18 AWG female flag/spade terminals on both ends clean with no corrosion. See pictures for full details.
- Continuity: Removed from working machine. Sold untested but visually inspected for wire and terminal integrity.
- Build Quality: 2-conductor 18 AWG gray jacket, AWM STYLE 2509 80°C 300V, RoHS Compliant.
Key Features & Function
- OEM Part 45334-080 REV.C: Direct replacement for self-powered Precor Experience Series ellipticals with 6V battery systems.
- Backup Power: Connects 6V battery to LPCA to maintain console settings and odometer during storage.
- Powers Memory/Clock: Keeps memory and clock active when unit isn’t being used or pedaled.
- 80" Length: Runs from battery bracket at base up to lower control board with proper routing.
- Flag/Spade Terminals: Red 22-18 AWG female terminals on both ends for secure battery and board connection.
- Polarity Marked: Red wire = Positive (+), Black wire = Negative (-). Critical for safe installation.
Red wire = Positive (+), Black wire = Negative (-). Reversing polarity will damage the lower control board. Match terminals to battery and LPCA markings carefully during installation.
Technical Specifications
Precor Part Number
45334-080 REV: C
SKU
PRE-BATT-45334-30
Function
Battery to lower control board cable – connects 6V battery to LPCA
Length
Approx 80"
Wire Type
2-conductor, 18 AWG gray jacket, AWM STYLE 2509 80°C 300V
Manufacturer
SANBOR 0825 = 25th week of 2008
Connectors
Red 22-18 AWG female flag/spade terminals on both ends
Voltage
6V DC system
Verified Machine Compatibility
- Precor EFX 546i
- Precor EFX 556i
- Precor EFX 576i
- Precor EFX 5.17i
- Precor EFX 835
This cable is only for self-powered units with 6V battery systems. Verify your machine has a 6V battery and uses flag/spade terminals on the lower board. Not compatible with plug-in models or newer lithium battery systems.
