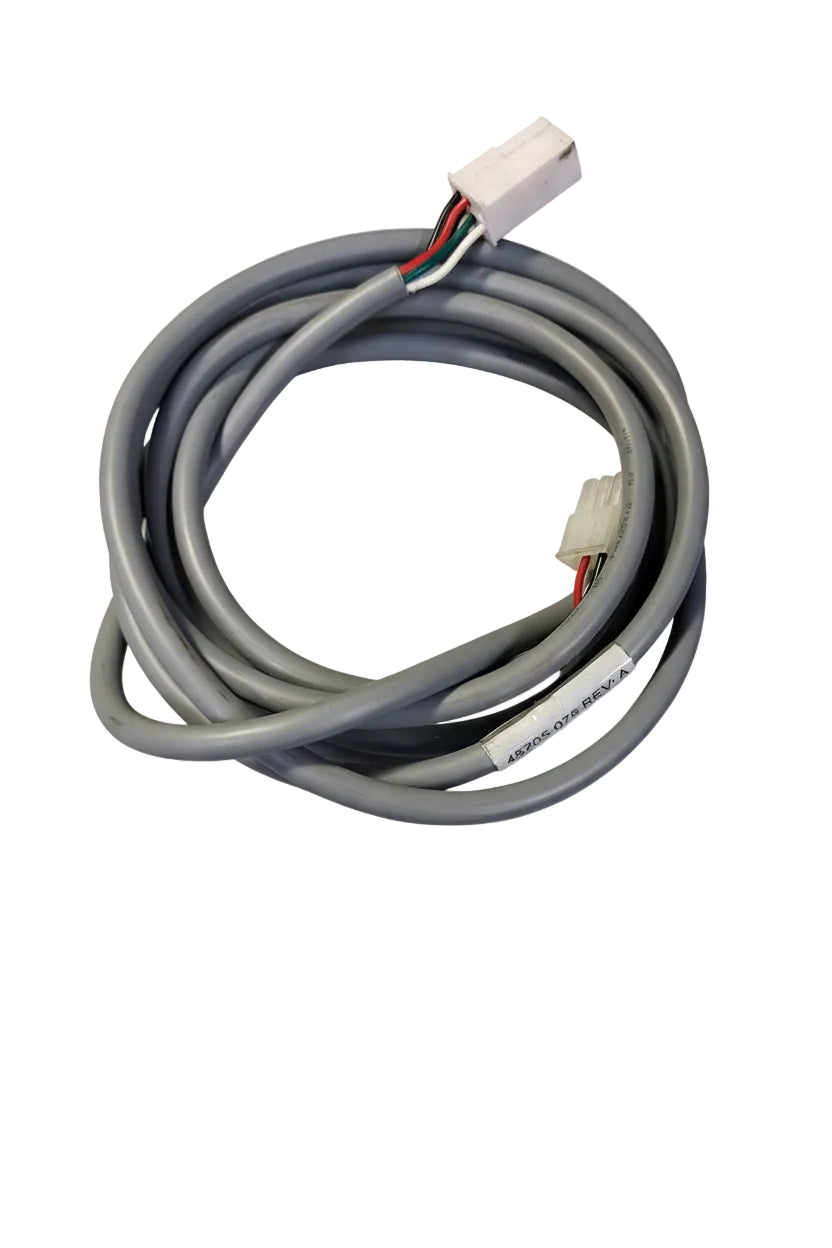

Precor CrossRamp Lift/Incline Motor Cable (45205-078 REV.A) – OEM
Condition: Used OEM | As-IsOriginal OEM replacement cable for Precor EFX CrossRamp lift motors. The Precor CrossRamp/Incline Motor Cable 45205-078 REV.A carries power and position feedback between the lower control board and lift motor on EFX 546i, 556i, 576i, and 835 ellipticals. Professional pull from a commercial facility. No cuts, frays, or damaged connectors.
Condition & Service
This is an original OEM Precor cable manufactured by SANBOR 0543 = 43rd week of 2005. Professional pull from a working commercial machine. Sold As-Is after visual inspection for pin damage and wire integrity.

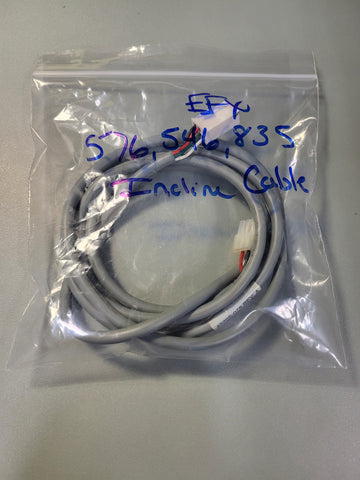

- Condition: Used OEM – No cuts, frays, or exposed wire. 4-pin Molex-style white connectors on each end are intact with no corrosion. See pictures for full details.
- Continuity: Removed from working machine. Sold tested and visually inspected for pin damage and wire integrity.
- Build Quality: CMG rated, 75°C, RoHS Compliant cable with 4 conductors: Red, Black, Green, White.
Key Features & Function
- OEM Part 45205-078 REV.A: Direct replacement for Precor Experience Series 5-series ellipticals with adjustable CrossRamp.
- Lift Motor Control: Sends up/down commands from lower board to CrossRamp lift motor.
- Position Feedback: Returns potentiometer position data to the lower board for ramp calibration.
- 78" Length: Runs from lower board up through frame to lift motor with proper routing.
- 4-Pin Molex Connectors: White connectors on each end, no corrosion or bent pins.
- Commercial Pull: Removed from working unit in professional facility, not a generic aftermarket cable.
Technical Specifications
Precor Part Number
45205-078 REV: A
SKU
PREC-INCL-45205-40
Function
CrossRamp/Incline Motor Cable
Length
Approx 78"
Cable Type
CMG rated, 75°C, RoHS Compliant
Manufacturer
SANBOR 0543 = 43rd week of 2005
Connectors
4-pin Molex-style white connector on each end
Wire Count
4 conductors: Red, Black, Green, White
Verified Machine Compatibility
- Precor EFX 546i
- Precor EFX 556i
- Precor EFX 576i
- Precor EFX 835
This cable is specific to Precor 5-series Experience Line ellipticals with adjustable CrossRamp and 4-pin lift motor connectors. Verify your existing cable part number 45205-078 and connector style before purchase. Not compatible with newer ramp systems using different connectors.
